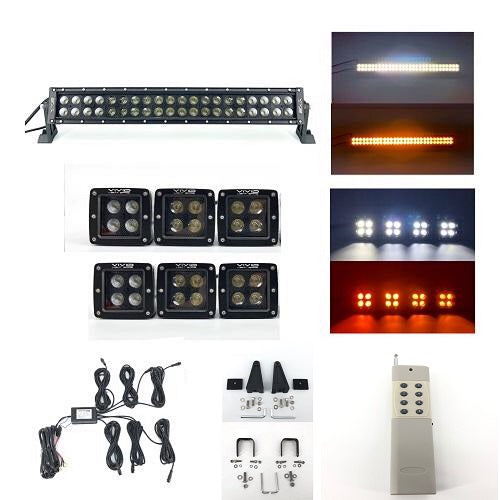

Package of 1 Dual Color Light Bar & 6 Pack 3.2 Inch 20W LED Pods

• Dimension : 3.2" for Pods  &  13.5'',21.5'', 31.5'', 41.5'', 50'', 52", 54" for a Light Bar
• LED Power : 20W for Pods  &  120W, 180W, 240W, 288W, 300W, 312W for a Light Bar
• Luminous Flux : 1600lm for each Pod  &  9000lm, 13500lm, 18000lm, 21600lm, 22500lm, 23400lm for a Light Bar
• Opitonal Beam : Flood/Spot for Pods  &  Combo for a Light Bar
• Operating Voltage : 12~24V DC for a Light Bar&Pods
• Waterproof Rate : IP68
• Body Color : Black
• Lens Material : PC
• White Light Color Temperature : 6000K
• Housing Material : Diecast aluminum alloy
• Mounting Bracket : Stainless Steel
• Working Temperature : -40ºC~+85ºC
• Lifespan : >30,000hrs
• Wiring Harness Length :  16.40 ft (5 meters) for pods
• Warranty : 2 years warranty

Kindly Note: 8 buttons wireless remote controller can not only control the light bar and light pods independently, but also control the whole set (light bar and light pods) synchronously.

There are 8 buttons on the controller. [ Button 1 and Button 5 are turn on/off, Button 2 and Button 6 are sync strobe pattern, Button 3 and Button 7 are alternating strobe pattern, Button 4 and Button 8 are steady color pattern. ]

• Separate control of the light bar and pods: Button 1-4 are used for the light bar, Button 5-8 are used for the light pods.
• Synchronous control the whole set: Button 1-4 is for the whole package.

Transfer Button: Button 4. This is a button that transfers between synchronous control and separate control. Every time you want to change the way to control, please long press Button 4.

What include the package :

About Brake/Turn Signal Line

This Brake/Turn Signal Line has 3 wires, which will have different flash effects when touch with positive wire.
Black Line for Right Turn;
Yellow Line for Left Turn;
Red Line for Brake.
